All Parts Will Be Beadblasted And Correctly Detailed And Painted Prior To Installation.

Check the "Camaro Information Page" for a list describing correct colors for all parts and components.

Click any image to enlarge.
<BGSOUND SRC="http://69camaro.20m.com/midi/layla2[1].mid">

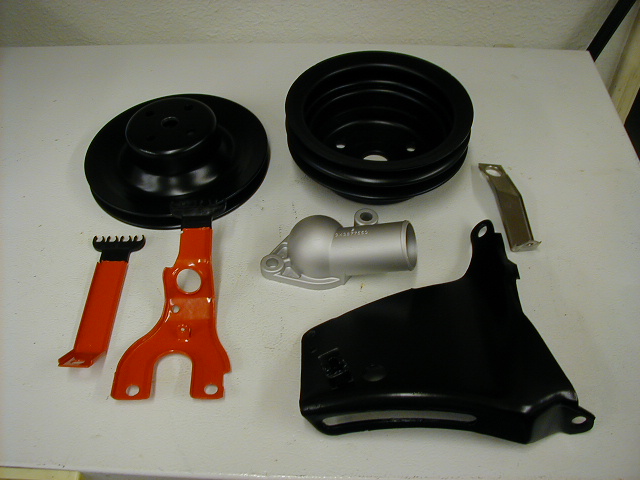

Miscelaneous Original Parts

The water pump & crankshaft pulleys (3932456DV, 3956668CG) were original to the car. I did have to purchase the spark plug wire towers, theremostat housing (3877660), power brake hose bracket, and correct alternator bracket w/clip.

Click to englarge

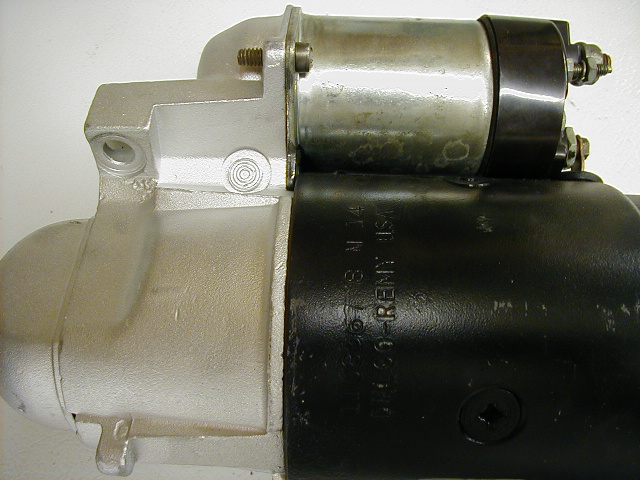

Original Z28 Starter

I didn't have too much trouble finding the correct starter 1108367 date 8 M 14. I saved some money by rebuilding it myself.

Click to enlarge

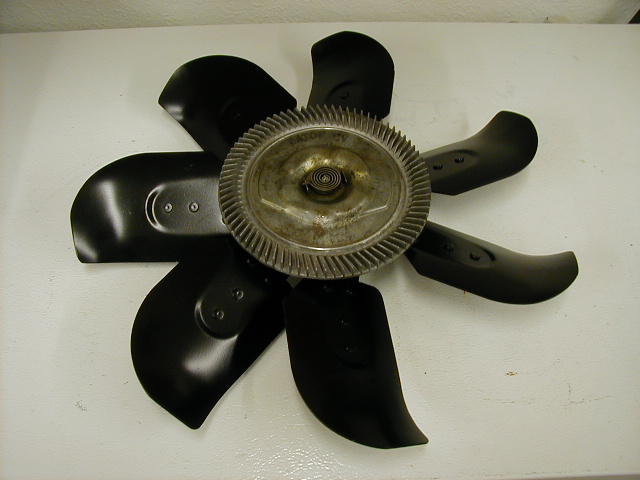

Original Z28 Fan And Eaton CV Fan Clutch

The original seven blade fan was with the car, but I found an original unrestored Eaton fan clutch from Jerry McNeish.

Click to enlarge

Please Feel Free To Contact Me With Any Questions You Have Regarding Z28 Part Numbers Or Date Codes
